Flexible
Efficient
Intelligent
Accurate
A comprehensive solution for urinanalysis
that integrates chemical, physical, and uri
nary sediment analysis.
– Cost and space saving, respond to lab needs flexibly. With a
variety of detection modes, it can be operated separately or in
combination.
– Improve testing efficiency. Integrate multiple detection mod
ules, a complete test of physical, chemical, and sediment using
a single sample.
– Introduce artificial neural network deep learning technology,
identify urinary sediments intellegently.
– Set standardized retest rules, perform multiple tests according
to the rules. Regulate testing processes to reduce laboratory
errors.

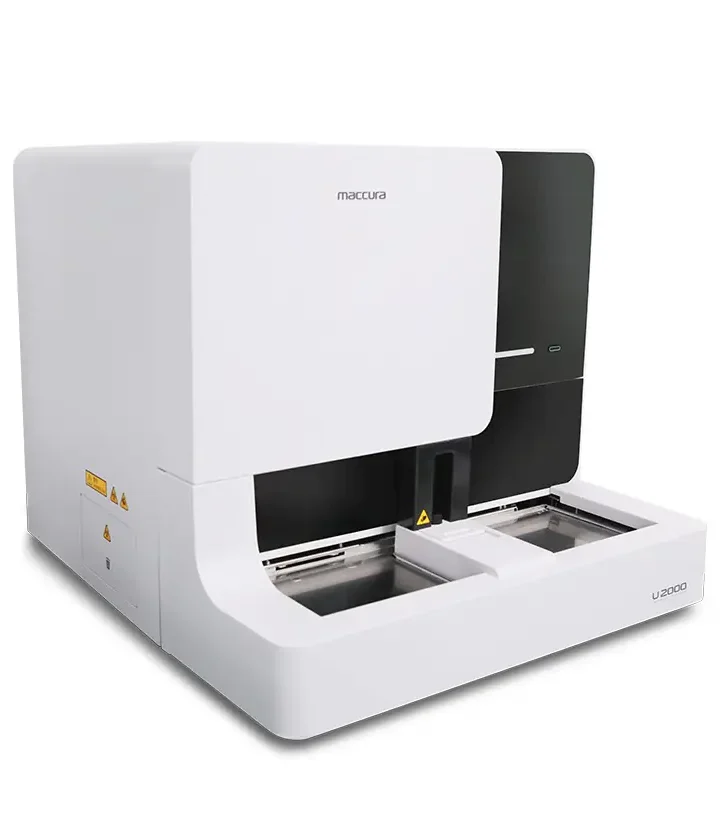

U2000
Throughput
Chemistry Mode: 240T/H
Morphology Mode: 120T/H
All Mode: 120T/H
Sample Processing
No needs to centrifugation and staining, the combined detection of dry chemistry and urinary sediment can be completed directly on the instrument. Simple and efficiet detection.
Supporting System
The automatic urinalysis system matches instruments, reagents and calibrators to ensure the accuracy of test results.

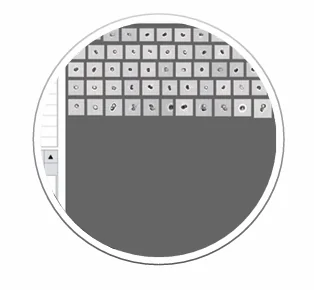

Urinary Sediment Identification
Flat flow cytometry technology combined with high-speed camera technology, the collected particle images have no overlap, no aggrega tion, intuitive and clear image display, and support graphic reports. The AI neural network deep learning technology is used to extract the multiple features of parti cles to realize the identification and classification of components.
| Product Specification | |
|---|---|
| Throughput | Chemistry Mode: 240T/H; Morphology Mode: 120T/H; All Mode: 120T/H |
| Detection Items | Physical: Color, Specific Gravity, Turbidity Urinary Sediment: WBC, RBC, Squamous Epithelial Cells, Non-Squamous Epithelial Cells, Hyaline Cast, Pathologic Cast, Bacterial, Crystals, Mucus, WBC mass, Yeast Like Cell, Sperm Dry Chemistry: Urobilinogen (URO), Bilirubin (BIL), Ketone (KET), Blood (BLD), Protein (PRO), Nitrite (NIT), Leucocyte (LEU), Glucose (GLU), pH(pH), Specific Gravity (SG)*, Vitamin C (VC), Microalbumin (MA), Creatinine (Cr), Calcium (Ca) |
| Detection Principle | Physical: Reflectivity method, refractive rate calculation, transmittance absorbance Urinary Sediment: Planar Flow Image Technology, Artificial Intelligence Recognition Technology Dry Chemistry: Photoelectric colorimetry |
| Sample Loading | Maximum 50 samples per detection, support continuous loading |
| Data Storage | > 200,000 |
| Sample Processing | Samples can be processed directly in the instrument, without centrifugation or staining |
| STAT | Support |
| Retest Rules | Support |
| Sample Barcode | Automatic identification or manual input |
| Report Mode | Multiple reporting modes can be selected, and the same report can show the results of dry chemistry and urinary sediment |
| Language | Chinese / English |
| Data Port | RS-232 communication interface/Web port |
| Operation System | 64-bit Windows 7/64-bit Windows 10 |
| Instrument Size | 656 mm × 590 mm × 670 mm (W×H×D) |
| Instrument Weight | 67 kg |
